Post-tension slabs are an innovative construction technique that combines strength and flexibility to make buildings more efficient and durable. As cities expand and building technologies advance, we are constantly searching for better ways to construct our structures, and post-tension slabs are one of the most promising innovations we have come up with. In this article, we will explore what post-tension slabs are, why they are great, how they are built, and why they are becoming increasingly popular in modern construction projects. If you want to know more about post-tension slabs, you’re in the right place!
Understanding Post-Tension Slabs

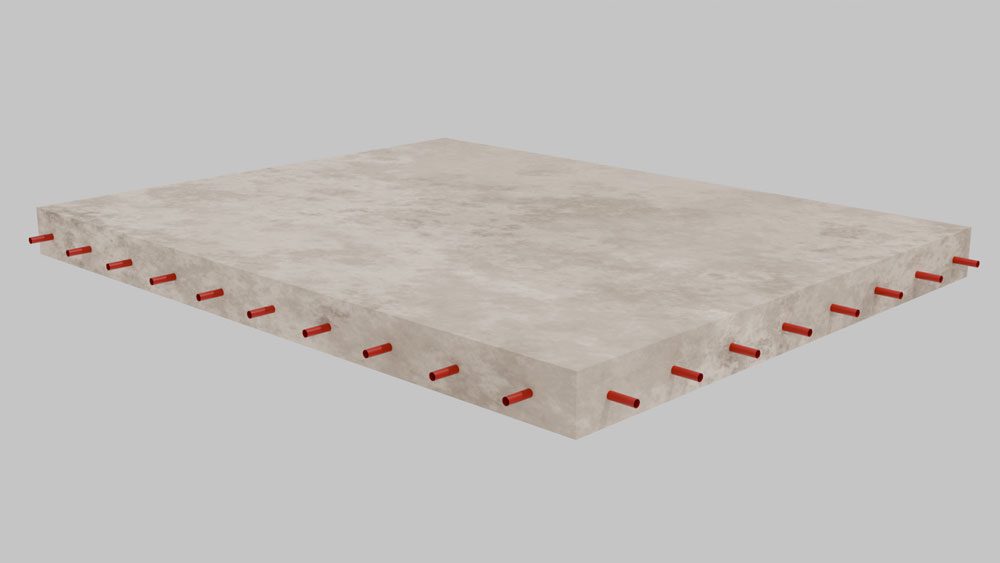

Post-tension slabs, a distinct type of concrete slab, stand out for their superior structural performance compared to traditional reinforced concrete slabs. These slabs are fortified with high-strength steel tendons that are tensioned after the concrete has reached a specific strength, compressing the slab and enabling it to bear more weight and span longer distances.
Post-tensioning involves running the high-strength steel tendons through ducts cast into the concrete slab. Once the concrete has cured to a specific strength, the tendons are tensioned using hydraulic jacks, which compress the slab. The slab’s compression provides many benefits, including supporting greater loads and spanning longer distances than traditional reinforced concrete slabs.
Why Use Post-Tension Slabs?
Concrete slabs have inherent structural weaknesses that make them susceptible to seasonal fluctuations and temperature changes, causing them to expand and contract. This phenomenon is particularly noticeable during winter when freezing temperatures frequently lead to cracks in the pavement, potholes, and fractured water mains.
When installing concrete slabs, it’s essential to consider the soil conditions. Soil tends to expand and contract when it gets wet, which can damage the concrete slabs over time. So, installing concrete slabs in weak and unstable soil areas can take time and effort.
Despite those conditions, post-tension slabs have an advantage over traditional slabs because they include steel cables inserted into the concrete. Once the concrete is poured, these cables are tensioned and anchored to the slab’s edges. This innovative design significantly enhances the load-bearing capacity of the slab, making it more durable and stable. The slab can withstand heavy loads and resist cracking by adding post-tensioning.
While the initial costs may be higher due to the specialized materials and labor, the overall cost benefits of reduced maintenance and material usage often result in a lower life cycle cost. Post-tensioning is a modern construction technique that enables builders to create thinner slabs, reduce concrete usage, and lower construction costs. Post-tension slabs can span longer distances without additional support, which helps prevent cracking, fortifying the foundation and providing a stable base. These benefits make post-tension slabs the preferred choice for modern construction.
The Mechanics of Post-Tensioning
This technique involves applying tension to steel cables or rods within the concrete once it is poured and cured. It helps prevent the slab from cracking and deforming under heavy loads. Once the concrete has achieved its required strength, typically around 75% of its final strength, hydraulic jacks are used to tension the tendons. These tendons are then anchored to the exterior edges of the slab, effectively compressing the concrete and creating a state of compression throughout the slab.
Benefits of Post-Tension Slabs
- Increased Load Capacity: Post-tension slabs are reinforced with high-strength steel strands that are tensioned after the concrete has hardened. This process compresses the concrete, which increases its load-carrying capacity. This feature makes post-tension slabs an ideal choice for constructing high-rise buildings, expansive commercial spaces, and industrial facilities that require sizable load-carrying capacity.
- Thinner Slabs and Longer Spans: Thanks to the steel strands that run through them, post-tension slabs require less concrete than traditional reinforced concrete slabs of the same span length. This feature allows architects to design buildings with thinner slabs and longer spans between columns, providing more flexibility. Longer spans also create open, unobstructed floor plans, popular in modern architecture.
- Reduced Cracking and Maintenance: Post-tension slabs tend to crack less than traditional reinforced concrete slabs. Steel strands run through them, helping distribute tensile stress more evenly. As a result, the likelihood of cracking is reduced, and less maintenance is needed over the building’s lifespan.
- Sustainability: Post-tension slabs are an environmentally friendly alternative to traditional reinforced concrete slabs because they use less concrete. Concrete production has a significant impact on the world’s carbon footprint. By requiring less concrete, post-tension slabs reduce CO2 emissions during manufacturing. Additionally, they use fewer materials, resulting in less waste generated during construction.

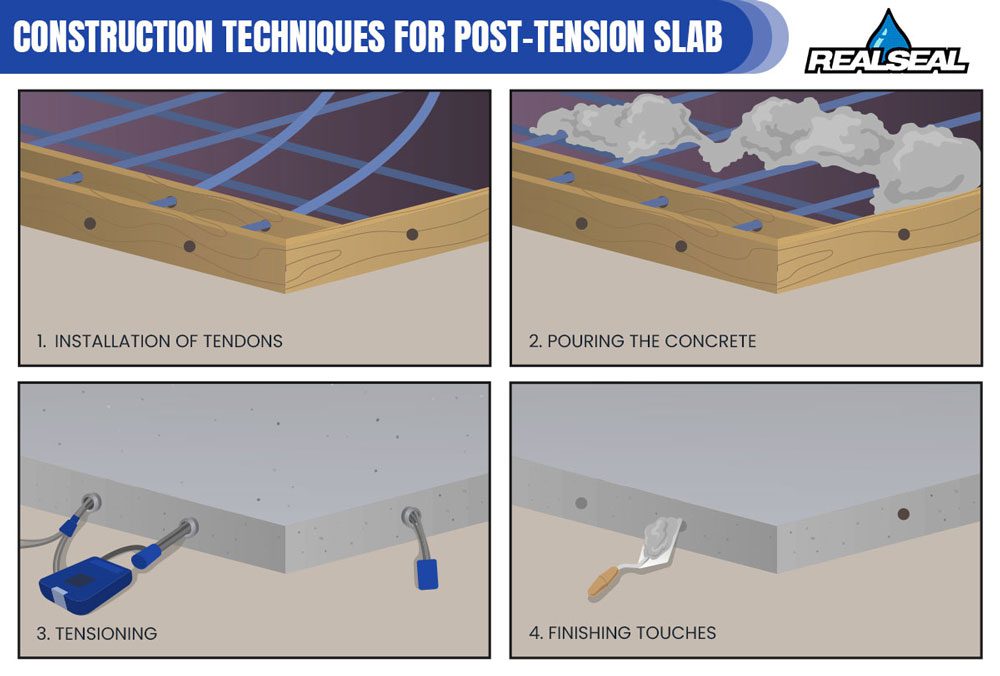

Construction Techniques for Post-Tension Slabs
Planning and Design
Designing a post-tensioned slab is a nuanced process that demands meticulous consideration of various factors to ensure safety and compliance. The slab’s load requirements, dimensions, and intended use are scrutinized to determine the tendon layout. Selecting the right concrete mix, including the appropriate cement, aggregate, and water content, is also critical for ensuring strength and durability. This attention to detail is pivotal in meeting all necessary standards, equipping you with a comprehensive understanding of the construction process.
Installation of Tendons
The tendons are laid out per the design specifications and encased in sheathing to prevent them from bonding with the concrete and allowing them to move when tensioned. Depending on the specific project requirements, this plastic or grease sheathing allows the tendons to move when tensioned and protects them from corrosion. The application of force elongates the tendons and compresses the concrete. The tendons are then anchored to the concrete to maintain the tension and the structure’s stability over time.
Pouring the Concrete
After the steel tendons have been placed in the desired locations, high-quality concrete is poured over them. The concrete is then allowed to cure until it reaches the required strength. Once the concrete has achieved the necessary strength, the post-tensioning process begins.
Tensioning
Each tendon is stretched and anchored to the slab edges using hydraulic jacks, with the correct force applied for optimal results.
Finishing Touches
Once the reinforcement has been properly tensioned, the slab is finished with a specific concrete mixture, sealants, or flooring materials, depending on the project’s requirements. Sealants protect the concrete from moisture, chemicals, and other potentially harmful substances. Flooring materials like tiles or carpets give the slab a finished look and feel. However, it is essential to ensure that all materials are compatible and applied correctly to create a smooth, even, safe, and long-lasting surface.
Applications of Post-Tension Slabs
Post-tensioning is used in bridges, walls, foundations, elevated slabs, and building columns.
Post-tension slabs are versatile and solid options for both residential and commercial buildings. They allow for modern and functional architecture in residential buildings while supporting heavy loads in commercial complexes and high-rise buildings. Post-tension slabs offer excellent structural performance for multi-story buildings. They require more formwork and cost more than flat slabs but don’t need column caps, which saves time and money during construction.
Post-tension slabs in bridge construction enable longer spans. They also maximize parking space with fewer columns and extended spans, resulting in a sleeker design.
If your house has post-tension slabs, there is likely to be something stamped on a concrete floor, indicating that you shouldn’t cut into the slab. This warning is usually found in the garage. If you don’t see anything, you might find it on the wall near the door between the garage and the house.
The Future of Construction with Post-Tension Slabs
Post-tension slabs are pivotal in modern construction, offering improved strength, flexibility, and efficiency. They can meet the demanding requirements of contemporary building designs while reducing environmental impact, making them a cornerstone of innovative construction technologies. As we continue to push the boundaries of what is possible in construction, post-tensioning is a technique for achieving buildings that are not only structurally sound but also economically and environmentally sustainable.
Post-tension slabs can be risky if they are not maintained correctly or if the tensioning process is improperly executed. Problems that can occur include tendon corrosion or anchorage failure. However, these risks can be minimized by following correct design and construction practices and performing regular maintenance. Specialized knowledge is required to repair damaged post-tension slabs and maintain the integrity of the tensioning system.
